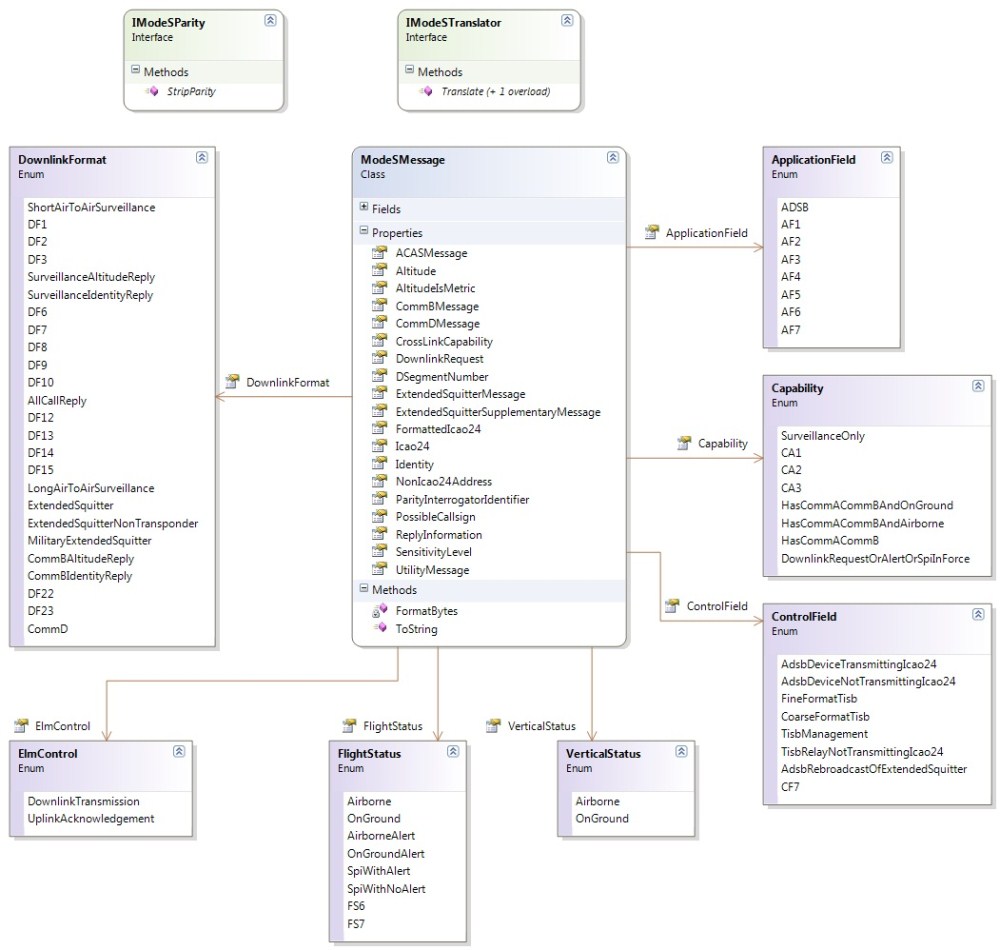

| VirtualRadar.Interface.ModeS Namespace |
The namespace for all of the interfaces and objects associated with decoding raw Mode-S messages from aircraft.
Classes| Class | Description | |
|---|---|---|
 | ModeSMessage |
Describes the content of a downlink message from a Mode A/C/S transponder.
|
| ModeSMessageEventArgs |
The event that is raised when a listener to a source of raw Mode-S messages from an aircraft receives a message.
|
Interfaces| Interface | Description | |
|---|---|---|
 | IModeSParity |
The interface for objects that can strip parity from a Mode-S message.
|
| IModeSTranslator |
The interface for objects that can decode a raw Mode-S downlink message sent by a transponder into the information
carried by the Mode-S message. Note that this does not decode the content of extended squitter messages.
|
Enumerations| Enumeration | Description | |
|---|---|---|
 | ApplicationField |
An enumeration of the different possible values for the AF field in DF19 messages.
|
| Capability |
An enumeration of the different communications capabilities of a transponder.
|
| ControlField |
An enumeration of the different values contained within the CF field of DF18 replies.
|
| DownlinkFormat |
An enumeration of the different downlink formats transmitted by transponders.
|
| ElmControl |
An enumeration of the different values of the ELM control bit in KE fields.
|
| FlightStatus |
An enumeration of the different values for FS fields in transponder replies.
|
| VerticalStatus |
An enumeration of the different possible values in a VS field.
|
Remarks
